WISSENSDATENBANK
Auf dieser Seite finden Sie die aktuellsten Informationen zu unseren Produkten. Klicken Sie auf eine Kategorie, um mehr darüber zu erfahren. Haben Sie nicht gefunden, wonach Sie gesucht haben? Schreiben Sie uns eine Nachtricht oder werfen Sie einen kurzen Blick in die frequently asked questions.
| Rookie |
|
|
|
|
Standard Wheel Deck | Front Wheel Mount | Side Mount | Asetek Mount | MOZA Mount | |
Asetek SimSports | La Prima 12 Nm | La Prima 12 Nm | |||
Accuforce | V1, (Pro) V2 | ||||
Conspit | When rotating the Side Mount 90°: | ||||
Fanatec |
CSL, CSW (2.5) | CSLDD / Pro / GT ClubSport DD DD1, DD2 | |||
Logitec |
G25, G27, G920, G923 | ||||
Moza | R3, R5, R9, R12, R16, R21 | R9v3, R12v2 | |||
Simagic |
Alpha | Alpha | Alpha U | ||
Simucube | Simucube 3 Sport |
Simucube 2 and 3 Sport | |||
Thrustmaster |
T150, T300, T500RS, TX,
TMX | ||||
VNM | VNM Direct Drive Supreme | ||||
VRS | VRS DFP15 |
VRS Direct Force Pro |
We deliver the following bolts to connect wheel bases with each wheel mounting option:
Mounting kit | Standard Wheel Deck
| Front Wheel Mount
| Side Mount
| Asetek Mount:
| MOZA Mount:
|
| One |
|
|
Asetek SimSports | La Prima, Forte | La Prima, Forte | La Prima, Forte |
Fanatec | CSL Elite (LC) (V2) | CSL Elite (LC) (V2) | CSL Elite (LC) (V2) Clubsport V3 |
Heusinkveld | Sprint | Sprint | |
Logitec |
G25, G27, G920, G923 included pedals | G25, G27, G920, G923 included pedals | G25, G27, G920, G923 included pedals |
Moza |
SR-P (Lite) | SR-P (Lite) | SR-P (Lite) |
Simagic |
P1000 | P1000 | P1000 P1000 Inverted P2000 |
Sim-Lab | XP1 | XP1 | |
Simucube | Throttle |
The pedals are only compatible when mounted on the Simucube baseplate. | The baseplate from Simucube is compatible with our Seat Slider. So you'll only need those 2 items, and not our Pedal Slider. |
Thrustmaster | F1, T3Pa, T3PM, T-LCM | F1, T3Pa, T3PM, T-LCM | F1, T3Pa, T3PM, T-LCM |
VRS | Pro Pedals |
| Pro Pedals |
We deliver the following bolts/nuts with our products:
Mounting kit | One, One Basic, Ace and Formula
| Rookie
| Pedal Slider Complete
|
If you need additional bolts, check out our DIY section, or more specifically our Heusinkveld Mounting Set which can be used to mount all sorts of stand alone pedals.
PEDAL BRACKETS
Our pedal deck consists primarily of two brackets that are ment for mounting three aluminum extrusion profiles. One 8040 and two 4040's. This gives you an almost unlimited amount of pedal compatibility. If you've got pedals that are not featured in the table above, than see this sketch if they will fit or not. The 110mm and 153mm slotted holes can be used to slide the extrusion profiles.
The Pedal Brackets have a huge range of adjustability. You can choose your own height and tilt angle, that ranges from -30 to +40 degrees on a Treq One. On the CXX and Ace rigs, this is even more due to the extra slots in the base frame. You can also flip the complete deck for an additional set of options, so you always have enough to perfectly setup your pedals.
PEDAL SLIDER BASEPLATE
The baseplate of the Pedal Slider has the following dimensions (in millimeters):

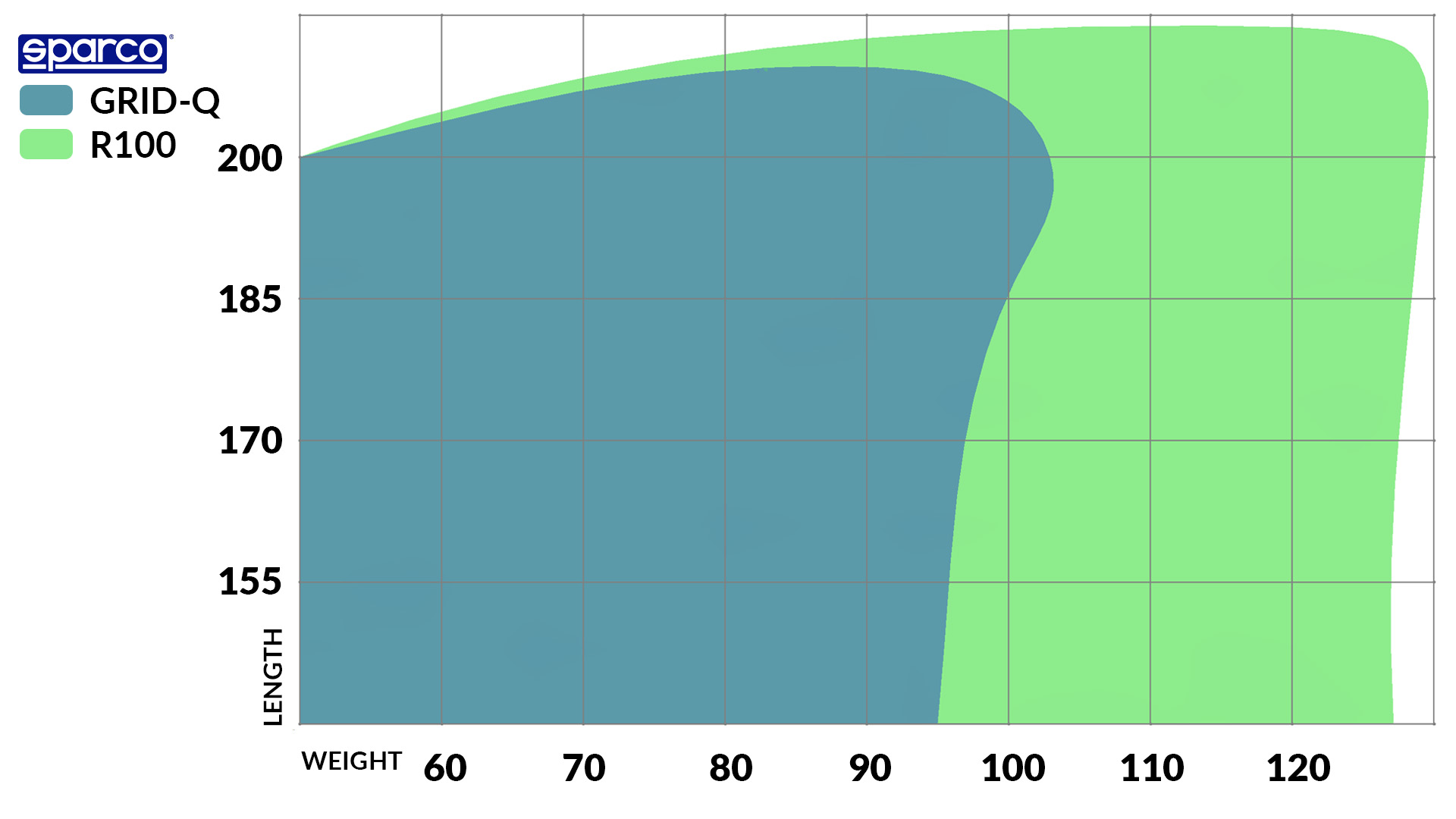

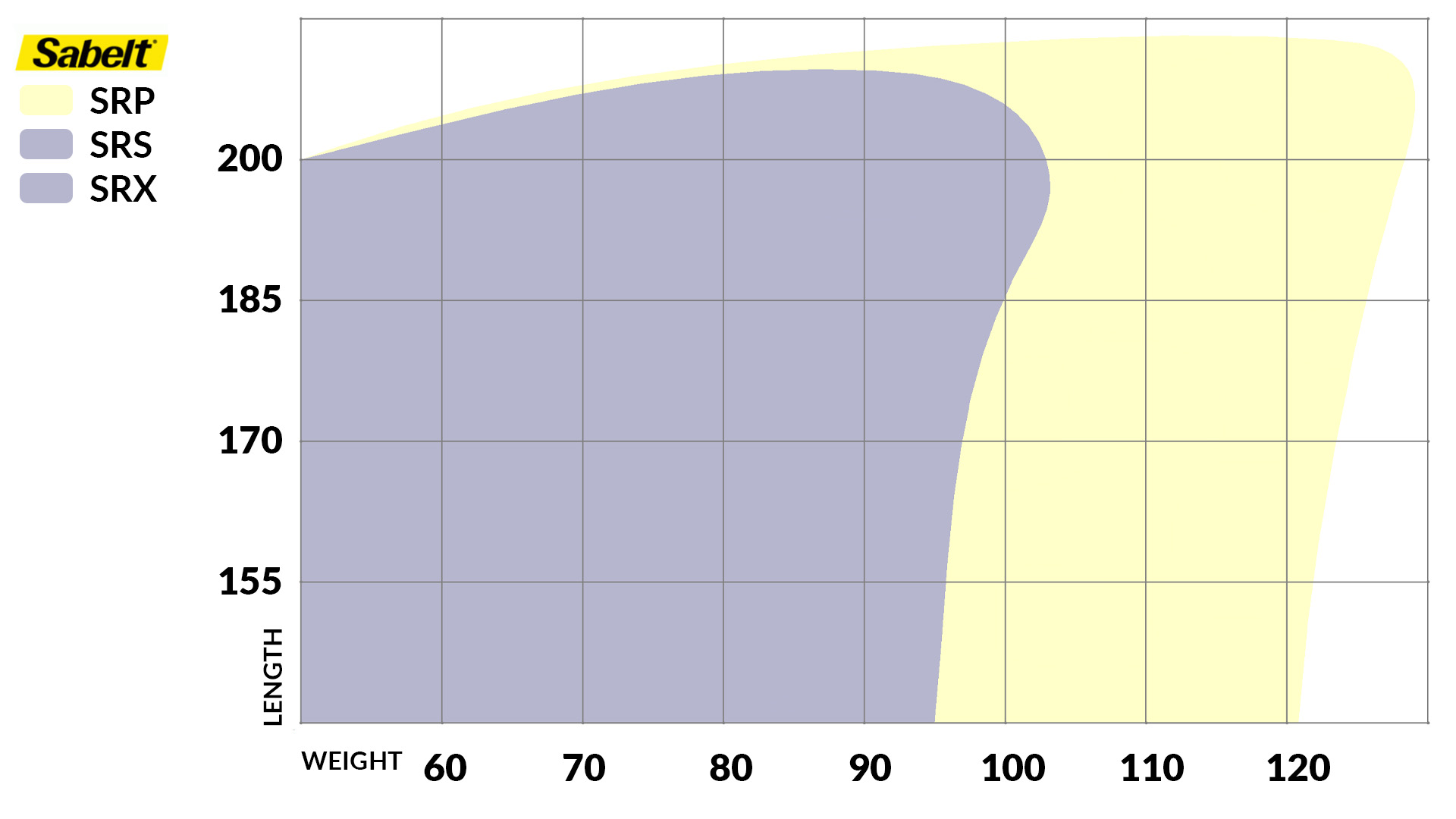

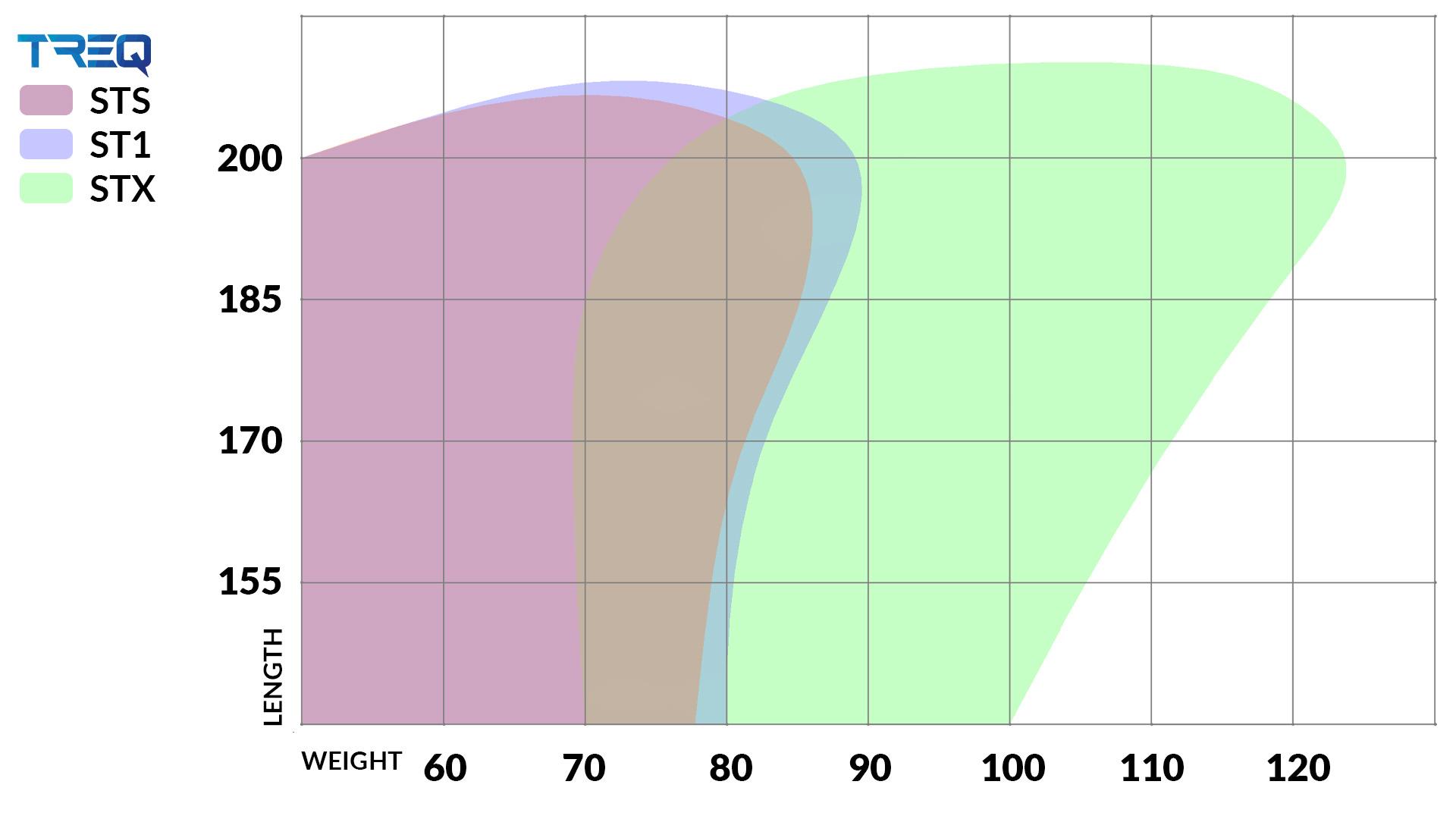

Choosing a seat is not only very personal, but also a difficult thing to do when you are missing the luxery of trying out different seats. To help you out, we did a survey with our customers and asked them how their own seat fits them. This gave us the results below. Body length is in centimeters and body weight is in kilograms. If you track your own length and weight down the graph, it gives you an idea if a seat is suitable for you. But:
Seat Slider
Our seat slider is compatible with our own Seat Brackets of course, but if you want to mount brackets from a different brand, these are the dimensions of our sliders:
All our sim rigs and most of our accessories use aluminum extrusion profiles. The dimensions can be found here:
Aluminum Profile Systeem: | ITEM, ISB, ISP, I-Type |
Profile T-slot: | 8 mm (-0 / + 0,3 mm) |
Profile series: | 40 mm |
Profile core: | 6,8 mm |
Thread size (optional): | M8 x 15 mm |
BLACK ANNODIZING
The profiles are annodized with a black finish. Anodizing increases resistance to corrosion and wear, and gives the products a better look and feel. The surface of the profiles can be prone to scratching, but most scratches can later be removed by using an abrasive sponge.
PROFILE DEPTH
The depth of each profile slot is 12 mm. This is an important size when choosing which size of bolt to use, since a bolt that is too long will bite into the profile and cannot be tightend.
Maximum bolt lenght (mm) = 12 + thickness of the part you want to mount.
WEIGHT
4040 = 1,40 kg / m
8040 = 2,35 kg / m
12040 = 3,20 kg / m
16040 = 4,10 kg / m
If you want to use our logo's on your custom made sim racing livery, we are more than happy to supply you with one!
Here you can find high resolution PNG images or our logo:
Click here to download the logo's.
TREQ BLUE
When we use a solid blue color for text, images, etc, we use the following:
|
- HEX: #176ab3
- RGB: 23, 106, 179
- CMYK: 87, 54, 0, 0
WALLPAPERS
8K Wallpapers - 7860 x 4320 pixels. Click here to download the images (50 mb).
